Exponential Decay

A quantity exhibits exponential decay if it decreases at a rate proportional to its current value. Formally, a quantity $y = f(x)$ decays exponentially if

$f(x) = y_0 (1 - r)^x, \quad x \geq 0, \quad r \in (0, 1), \tag{1}$

where $y_0 \triangleq y(0)$ is the initial quantity and $r$ is the rate of decay. To simplify and focus the discussion, this post will focus on exponential decay. However, exponential growth, when a quantity increases at a rate proportional to its current value, is formalized by Equation $1$ when $(1 - r)$ is replaced with $(1 + r)$ and $r \gt 0$. Here, $r$ is the rate of growth.

For an example of exponential decay, let $y_0 = 100$ and $r = 0.5$. Then $y$ begins with an initial value of $100$ and then decreases by half of its current value for each integer increment of $x$:

$\begin{array}{c|c} x & y \\ \hline \\ 0 & 100 (1/2)^0 = 100 \\ 1 & 100 (1/2)^1 = 50 \\ 2 & 100 (1/2)^2 = 25 \\ \vdots & \vdots \end{array} \tag{2}$

Of course, $x$ need not be an integer. For example, $f(0.2) \approx 87.06$ in the current example. See Figure $1$ for exponential decay for several rates $r$ and $y_0 = 1$.

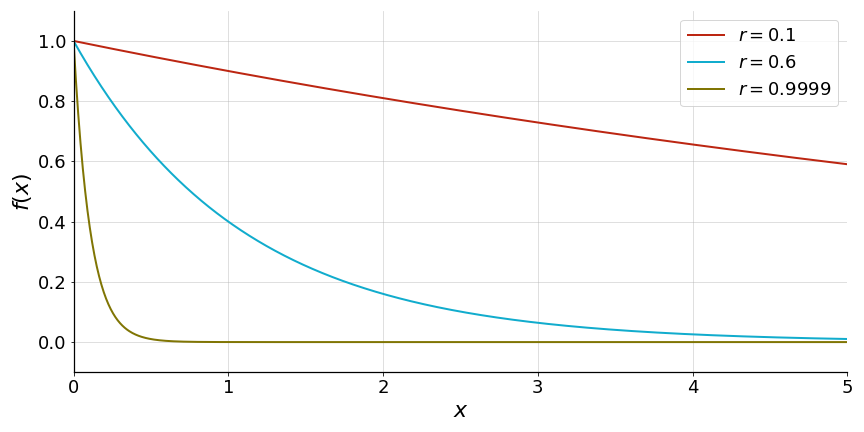

Figure 1. Exponential decay, $f(x) = (1 - r)^x$, for several decay rates $r \in (0, 1)$.

Natural exponential decay

Equation $1$ with an integer-valued $x$ is probably how a teacher would explain exponential decay to children. However, beyond an introductory level, exponential decay or growth is conventionally expressed in terms of Euler’s number $e$ and a decay parameter $\lambda$:

$f(x) = y_0 e^{-\lambda x}, \quad x \geq 0, \quad \lambda \gt 0. \tag{3}$

Here, $\lambda$ controls how fast $y$ decays (Figure $2$). This formulation is sometimes referred to as a natural exponential function, the counterpart to the natural logarithm $f(x) = \log_e(x) = \ln(x)$. (We will see why this formulation is “natural” in a moment.)

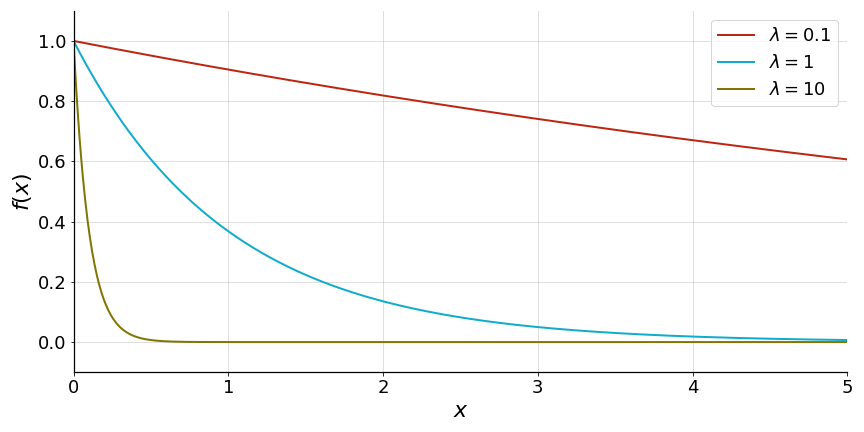

Figure 2. Exponential decay, $f(x) = e^{-\lambda x}$, for several values of the decay parameter, $\lambda \gt 0$.

We can easily switch between these two parameterizations:

$\begin{aligned} y_0 (1-r)^{x} &= y_0 e^{-\lambda x} \\ &\Downarrow \\ \lambda &= -\ln(1-r). \end{aligned} \tag{4}$

We can plot this relationship (Figure $3$) to better understand it. So as $r$, the rate of decay, increases, the decay parameter also increases.

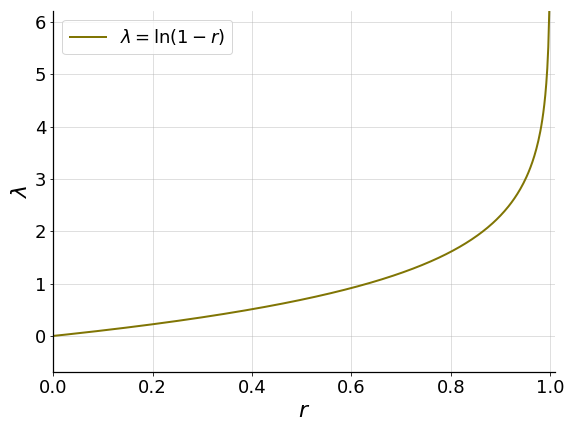

Figure 3. The relationship between $\lambda$ and $r$.

Why is the mathematical constant $e$ used in so-called natural exponential decay? According to Wikipedia, the constant $e$ was discovered by Jacob Bernoulli in 1683, when studying compound interest (exponential growth). Thus, $e$ arose from understanding exponential functions.

Here is the problem Bernoulli was thinking about. Imagine that you had $p$ of some currency, say $$10$ USD, in an account that pays $100\%$ interest per year. Then after one year, you would have $p (1+1) = 2p$ or $$20$ USD. Now imagine that interest compounds once every half-year but paid $50\%$ interest per period. Then after two half-years, you would have $p (1+0.5)^2 = 2.25p$ or $$22.5$ USD. Now imagine that interest compounds once every quarter-year but paid $25\%$ interest per period. Then after four quarter-years, you would have $p (1+0.25)^4 \approx 2.44p$ or approximately $$24.40$ USD.

The question Bernoulli asked was: what happens when interest compounds continuously? This question is particularly interesting because so many physical systems and phenomena grow or decay in a continuous manner. For example, a cell might split into two cells in a given time period, but the process is not discrete. In reality, the cell is not a single cell and then, in an instant, two cells. Instead, it is continuous, with growth upon growth. (This YouTube video has an excellent visualization of what I mean here.)

Let’s formalize this. Let $n$ be the number of periods, and $1/n$ be the interest rate per period. We want to compute the limit as $n$ approaches infinity. What Bernoulli observed is that this limit is equal to a constant, which is conventionally denoted $e$:

$e = \lim_{n \rightarrow \infty} \left(1 + \frac{1}{n}\right)^n. \tag{5}$

Thus, with continuous compounding, the amount of money after one year is $pe$. While I won’t prove Equation $5$, it is easy and useful to visualize it (Figure $4$).

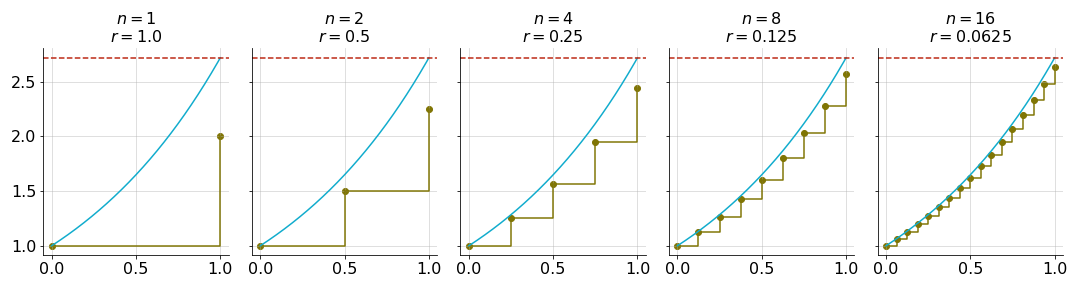

Figure 4. Discrete approximations (yellow step-wise functions) of the continuous exponential function $f(x) = e^{x}$ (blue lines) for an increasing number of time periods $n$. As $n$ increases, the total amount compounded approaches the mathematical constant $e$.

So what is $e$? Like $\pi$, $e$ is a transcendental number, and approximations of it have improved over the centuries. Here are the first $21$ digits of $e$:

$e \approx 2.71828\;18284\;59045\;23536\;\dots \tag{6}$

So this is one way to think about exponential decay (and growth) of base $e$, and why it is considered a natural formulation: $e$ simply emerges when we compute exponential growth continuously.

It’s worth spending another moment to think about this. Why should the initial rate of growth (the rate of growth that Bernoulli considered) be $r=1$, meaning a doubling every year? One argument is that doubling is the most “natural” rate of growth, since the quantity is always increasing by its current amount. Of course, we could imagine a rate of growth of $2.9$ or $0.76$. However, unity is elegant and simplifies the derivations. Furthermore, we can simply generalize the definition of $e$ in Equation $5$ to account for any arbitrary growth rate $\alpha$:

$e^{\alpha} = \lim_{n \rightarrow \infty} \left(1 + \frac{\alpha}{n}\right)^n. \tag{7}$

See this Wikipedia page for details. This gives us a nice interpretation of the decay parameter $\lambda$ in Equation $3$: it is rate of decay when that decay is continuous! See Figure $5$ for some examples.

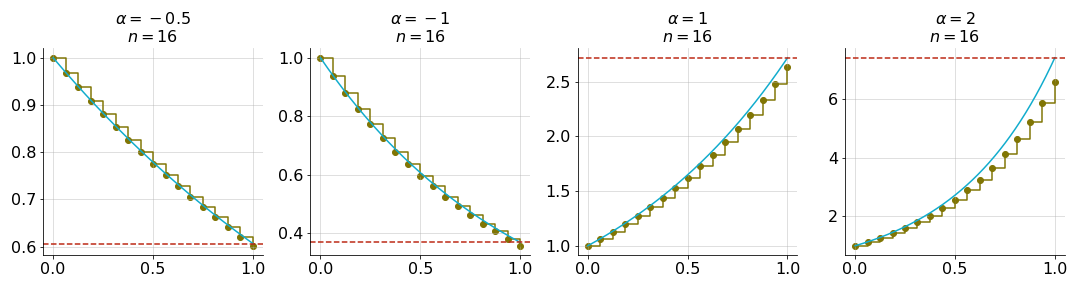

Figure 5. The exponential function, $f(x) = e^{\alpha x}$, for both negative (decay) and positive (growth) values of $\alpha$.

In my mind, Equation $7$ and Figure $5$ really capture why exponential decay and growth are naturally base $e$. With exponential growth, Euler’s number represents the total amount of the quantity if it continuously grows by doubling. With exponential decay, the inverse of Euler’s number ($1/e$) represents the remaining amount of the quantity if it continuously decays by halving. And we can easily model faster or slower rates of growth or decay by changing $\alpha$.

Halflife

A common way to think about exponential decay is in terms of the decaying quantity’s halflife, which quantifies how fast the decay is occurring. The halflife is the time required for the decaying quantity to be reduced to half its initial value. Here, $x$ represents time, and the halflife is the value of $x$, call this $x_{\textsf{HL}}$, such that

$f(x_{\textsf{HL}}) = y_0 / 2. \tag{8}$

We can easily solve for $x_{\textsf{HL}}$:

$\begin{aligned} y_0 / 2 &= y_0 e^{-\lambda x_{\textsf{HL}}} \\ 1/2 &= e^{-\lambda x_{\textsf{HL}}} \\ -\ln(2) &= -\lambda x_{\textsf{HL}} \\ &\Downarrow \\ x_{\textsf{HL}} &= \frac{\ln(2)}{\lambda}. \end{aligned} \tag{9}$

See Figure $6$ for a new version of Figure $2$ with the halflives denoted with vertical lines. As we can see, there is a one-to-one relationship between the decay parameter and the halflife. The halflife is nice because it is pretty intuitive. If we know that a process has a halflife of $x_{\textsf{HL}} = 5$, for example, we know that it will decay to half its initial value in $5$ time periods.

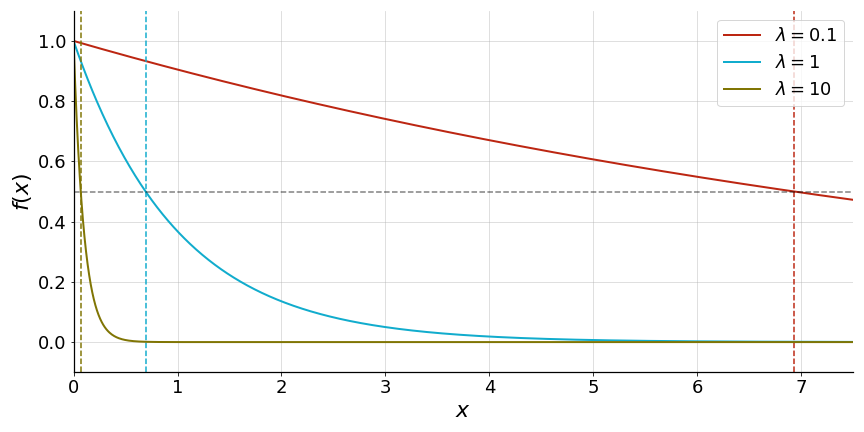

Figure 6. Exponential decay for various decay parameters $\lambda$, along with their halflives (vertical dashed lines).

We can also express exponential decay in terms of the halflife parameter, by plugging in $\lambda = \ln(2) / x_{\textsf{HL}}$ into Equation $3$.

$\begin{aligned} f(x) &= y_0 e^{-\lambda x} \\ &= y_0 e^{-(\ln(2) / x_{\textsf{HL}}) x} \\ &= y_0 \left( \frac{1}{2} \right)^{x / x_{\textsf{HL}}}. \end{aligned} \tag{10}$

We can see that when $x = x_{\textsf{HL}}$, Equation $9$ is equal to $y_0 / 2$. When $x \gt x_{\textsf{HL}}$, then Equation $9$ has less than $y_0 / 2$ and when $x \lt x_{\textsf{HL}}$, it has more than $y_0 / 2$.

Mean lifetime

So far, we have thought about exponential decay as a function. However, we can also think of exponential decay as a probabilistic model. This interpretation adds a lot of intuition for how exponential decay behaves in the wild, e.g. how a nucleus with many particles decays.

Here is the idea. Imagine a hundred people are in a room together, and each person has a fair coin. Every minute, everyone in the room flips their coin. If a person’s coin comes up heads with probability $p$, they must leave the room. Otherwise, they stay. This experiment simulates exponential decay with a halflife of one, where the decaying quantity is the number of people in the room (Figure $7$).

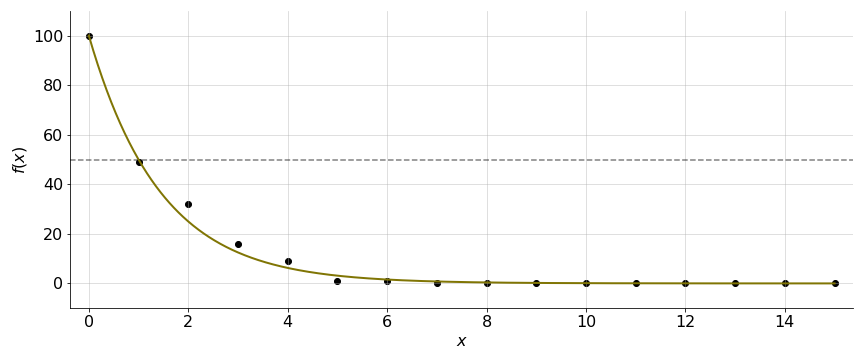

Figure 7. Simulation of the following experiment: $100$ people each flip a fair coin. For each person, if their coin is heads with probability $p = 0.5$, they must leave the room. Otherwise, they stay. For each trial in the experiment, the remaining people in the room flip their coins again to decide if they must leave or stay. The total number of people in the room follows an exponentially decaying function, $f(x) = y_0 p^x$.

What’s the probabilistic model here? Let $X_i$ be a random variable, denoting how long person $i$ remains in the room. We assume each person has a coin with the same bias $p$, and that all the coin flips, across time and individuals, are independent of each other. So the probability that $X_i$ takes on a value $x$—this represents the probability that person $i$ remains in the room until time $x$—must be

$\mathbb{P}(X_i = x) = (1-p)^{x-1} p. \tag{11}$

This is the probability that person $i$’s coin landed on tails (with probability $(1-p)$) for $x-1$ trials before landing on heads (with probability $p$). Clearly, $X_i$ is geometrically distributed. And the continuous analog to the geometric distribution is the exponential distribution. So if person $i$ were to continuously flip their coin, then $X_i$ would be exponentially distributed with density function

$\mathbb{P}(X_i = x) = \lambda e^{-\lambda x}. \tag{12}$

The distribution defined by Equation $12$ is exponential decay with an initial value $\lambda$, where $\lambda$ is the initial amount such that the total area under the curve is unity. See A1 for the derivation of the normalizing constant $\lambda$. Furthermore, we know that the expected value of an exponential random variable with parameter $\lambda$ is

$\mathbb{E}[X_i] = \frac{1}{\lambda}. \tag{13}$

See A2 for a derivation. And this expectation can be viewed as the mean lifetime of all the people in the room.

Mean lifetime is interesting in a few ways. First, it immediately suggests yet another way to think about the decay rate $\lambda$. If $\lambda = 0.1$, for example, then the mean lifetime is $10$. So as $\lambda$ decreases, the expected lifetime increases (for an element in a set with $y_0$ elements).

Second, if we plug $1 / \lambda$ into Equation $3$, something fascinating happens. We find that the mean lifetime occurs when the initial quantity $y_0$ has decayed to $1/e$ of its value! Let $x_{\textsf{ML}}$ denote the mean lifetime. Then

$f\!\left( x_{\textsf{ML}} \right) = y_0 e^{-\lambda (1 / \lambda)} = \frac{y_0}{e}. \tag{14}$

So the halflife is the value $x_{\textsf{HL}}$ such that the initial quantity $y_0$ has decayed to half of its value, while the mean lifetime is the value $x_{\textsf{ML}}$ such that the initial quantity $y_0$ has decayed to $1/e$ of its value (approximately $1/3$). This is yet another reason why exponential decay with base $e$ is considered special or natural.

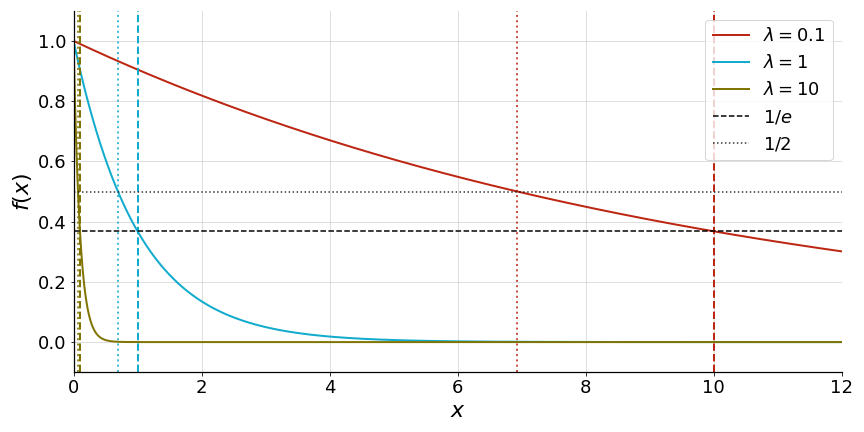

Figure 8. Exponential decay for various decay parameters $\lambda$, along with their halflives (lighter vertical dashed lines) and their mean lifetimes (darker vertical dashed lines). Note that the mean halflives intersect the exponential curves at $1/e$.

See Figure $8$ for examples of both halflife and mean lifetime for various exponentially decaying functions. Note that while halflife and mean lifetime are approximately the same value when $\lambda$ is large, this is not true when $\lambda$ is small. This is because as a process decays more slowly, the difference in time when it achieves $1/2$ of its value and $1/e$ of its value becomes bigger and bigger.

Computing $\lambda$

Imagine that we do not know the decay parameter $\lambda$ (or $x_{\textsf{HL}}$ or $x_{\textsf{ML}}$), but that we have observed two values $y_i$ and $y_j$, at time points $x_i$ and $x_j$, of a quantity that we assume follows exponential decay. Then we can solve for $\lambda$ (and thus $x_{\textsf{HL}}$ and $x_{\textsf{ML}}$) directly. First, we can write the ratio of $y_i$ and $y_j$ as

$\frac{y_i}{y_j} = e^{-\lambda (x_i - x_j)}. \tag{15}$

Taking the natural logarithm of both sides, we can simplify for $\lambda$:

$\lambda = \frac{\ln(y_i) - \ln(y_j)}{x_j - x_i}. \tag{16}$

Thus, if we know that a process decays exponentially, then we can estimate the decay parameter with only two data points. This is one of the useful properties of exponential decay. Not only does it capture a lot of physical phenomena, it does so with only a single parameter that can be easily estimated.

Integration

A final reason (that I’ll mention) exponential decay with base $e$ is nice is because the derivative of the exponential function $e^x$ is simply $e^x$:

$f(x) = e^x, \quad \implies \quad f^{\prime}(x) = e^x. \tag{17}$

This makes both derivatives and anti-derivatives relatively easy. One useful operation that is relatively easy to compute is the total amount of the decayed property between two time points, which is $y_0$ minus the total area under the curve until some time point $x$ (Figure $9$).

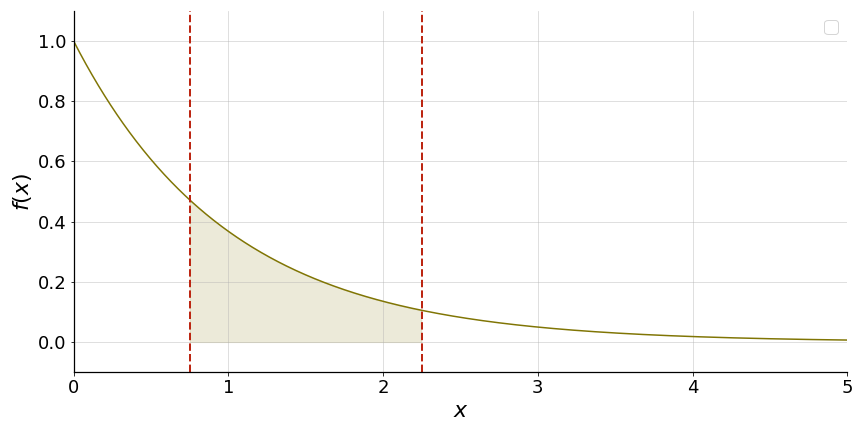

Figure 9. A definite integral of an exponential function (yellow shaded region).

In general, the integral between any two points $x_i$ and $x_j$ is

$\begin{aligned} \int_{x_i}^{x_j} y_0 e^{-\lambda x} dx &= \frac{e^{-\lambda x}}{-\lambda} + C \Big|_{x=x_i}^{x_j} \\ &= \frac{y_0}{\lambda} \left(e^{-\lambda x_i} - e^{-\lambda x_j} \right) \end{aligned} \tag{18}$

This integral simplifies nicely if $x_i = 0$ or $x_j = \infty$. If $x_i = 0$, then Equation $18$ is

$\frac{y_0}{\lambda} \left(1 - e^{-\lambda x_j} \right). \tag{19}$

And if $x_j = \infty$, then Equation $18$ is

$-\frac{y_0}{\lambda} e^{\lambda x_i}. \tag{20}$

Either way, the point is that computing these integrals is relatively straightforward, and effectively amounts to a difference in exponential terms, properly scaled.

Appendix

A1. Exponential distribution’s normalizing constant

We want to solve for the normalizing constant $g$ here:

$1 = \int_0^{\infty} \frac{1}{g} e^{-\lambda x} dx. \tag{A1.1}$

Since we can easily take the anti-derivative (and derivative) of $f(x) = e^x$, we can easily integrate this to solve for $g$:

$\begin{aligned} g &= \int_0^{\infty} e^{-\lambda x} dx \\ &= \frac{e^{-\lambda}}{-\lambda} + C \Big|_{x=0}^{\infty} \\ &= \frac{1}{\lambda}. \end{aligned} \tag{A1.2}$

And we’re done.

A2. Mean of exponential distribution

We want to compute the expectation

$\mathbb{E}[X] = \int_0^{\infty} x \mathbb{P}(X = x) dx. \tag{A2.1}$

We first plug in the exponential distribution’s density function to get

$\mathbb{E}[X] = \int_0^{\infty} \lambda x e^{-\lambda x} dx. \tag{A2.2}$

We can solve this by integration by parts. Define $u$, $v$, $du$, and $dv$ as

$\begin{aligned} dv &= e^{-\lambda x} dx, \\ v &= -\frac{1}{\lambda} e^{-\lambda x}, \\ u &= \lambda x, \\ du &= \lambda dx. \end{aligned} \tag{A2.3}$

Then we can use the formula for integration by parts,

$\int_a^b u dv = uv \Big|_a^b - \int_a^b v du, \tag{A2.4}$

which gives us

$\begin{aligned} \int_0^{\infty} \lambda x e^{-\lambda x} dx &= \lambda x \left( -\frac{1}{\lambda} e^{-\lambda x} \right) \Bigg|_0^{\infty} - \int_0^{\infty} - \frac{1}{\lambda} e^{-\lambda x} \lambda dx \\ &= - x e^{-\lambda x} \Big|_0^{\infty} + \int_0^{\infty} e^{-\lambda x} dx \\ &= 0 + \frac{e^{-\lambda x}}{-\lambda} \Big|_0^{\infty} \\ &= \frac{1}{\lambda}. \end{aligned} \tag{A2.5}$

If it’s not clear why

$x e^{-\lambda x} \Big|_0^{\infty} = 0, \tag{A2.6}$

simply rewrite this as

$\lim_{x \rightarrow \infty} \frac{x}{e^{-\lambda x}} = \frac{\infty}{\infty} = \text{ ?} \tag{A2.7}$

and apply L’Hôpital’s rule.
